RF3283 - DUAL-BAND GSM900/DCS1800 TRANSMIT MODULE

Product Overview

RFMD

Datasheet Details

Part number	RF3283
Manufacturer	RFMD
File Size	368.67 KB
Description	DUAL-BAND GSM900/DCS1800 TRANSMIT MODULE
Datasheet	RF3283 Datasheet

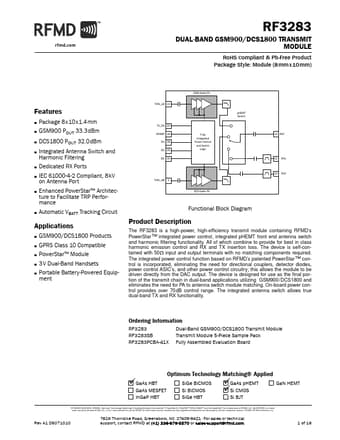

Additional preview pages of the RF3283 datasheet.

Product details

Description

www.DataSheet.net/ GSM900/DCS1800 Products GPRS Class 10 Compatible PowerStar™ Module 3V Dual-Band Handsets Portable Battery-Powered Equipment The RF3283 is a high-power, high-efficiency transmit module containing RFMD’s PowerStar™ integrated power control, integrated pHEMT front end antenna switch and harmonic filtering functionality.All of which combine to provide for best in class harmonic emission control and RX and TX insertion loss.The device is self-contained with 50 Ω input and outpu

Features

pHEMT Switch TX_EN 25 VRAMP 26 B1 28 B2 29 B3 30 Fully Integrated Power Control and Switch Logic 15 ANT Package 8x10x1.4mm GSM900 POUT 33.3dBm DCS1800 POUT 32.0dBm Integrated Antenna Switch and Harmonic Filtering Dedicated RX Ports IEC 61000-4-2 Compliant, 8kV on Antenna Port Enhanced PowerStar™ Architecture to Facilitate TRP Performance Automatic VBATT Tracking Circuit 12 RX1.
10 TXIN_HB 3 RX2.
DCS GaAs PA.
