RF3223 Datasheet - RF Micro Devices

HIGH LINEARITY/DRIVER AMPLIFIER

RF3223 Features

* 500MHz to 2000MHz

* +44.0dBm Output IP3

* +14.0dB Gain at 850MHz BIAS GND GND

* +11.4dBm Input P1dB at 850MHz

* 3.4dB Noise Figure at 850MHz 9 GND 8 RF OUT 7 GND 12 GND 1 RF IN 2 GND 3 4 GND 11 10

* Single 5V Power Supply Ordering Informatio

RF3223 General Description

The RF3223 is a high-efficiency GaAs Heterojunction Bipolar Transistor (HBT) amplifier packaged in a low-cost surface-mount package. This amplifier is ideal for use in applications requiring high-linearity and low noise figure over the 500MHz to 3GHz frequency range. The RF3223 operates from a singl.

RF3223 Datasheet (181.31 KB)

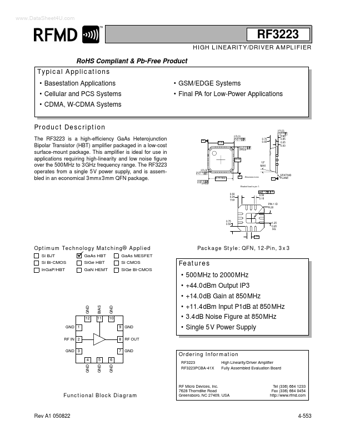

RF3223 Datasheet Preview — Preview of RF3223 PDF

Datasheet Details

Part number:

RF3223

Manufacturer:

RF Micro Devices

File Size:

181.31 KB

Description:

High linearity/driver amplifier.
www.DataSheet4U.com RF3223 0 RoHS Compliant & Pb-Free Product Typical Applications Basestation Applications Cellular and PCS Syst.
