SGA2163Z - CASCADABLE SiGe HBT MMIC AMPLIFIER

SGA2163Z Description

SGA2163ZDC to 5000MHz, Cascadable SiGe HBT MMIC Amplifier SGA2163Z DC to 5000MHz, CASCADABLE SiGe HBT MMIC AMPLIFIER Package: SOT-363 Product Desc.
The SGA2163Z is a high performance SiGe HBT MMIC Amplifier.

SGA2163Z Features

* Broadband Operation: DC to 5000 MHz
* Cascadable 50
* Operates from Single Supply

SGA2163Z Applications

* PA Driver Amplifier
* Cellular, PCS, GSM, UMTS
* IF Amplifier
* Wireless Data, Satellite Parameter Specification Min. Typ. Max. Unit Condition Small Signal Gain 9.5 10.5 11.5 dB 850MHz 9.8 dB 1950MHz 9.6 dB 2400MHz Output Power at 1dB Compression 7.1 dBm 850 MHz 6.2

📥 Download Datasheet

Preview of SGA2163Z PDF

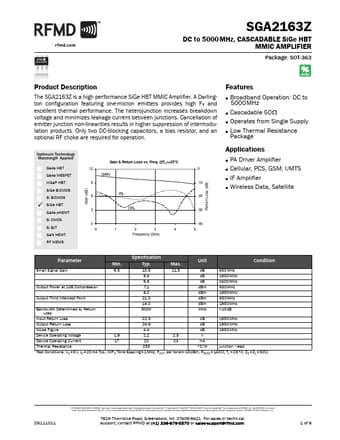

datasheet Preview Page 2 datasheet Preview Page 3
