SGA2386Z

CASCADABLE SiGe HBT MMIC AMPLIFIER

RFMD

SGA2386Z Features

* High Gain: 15.3dB at 1950 MHz

* Cascadable 50Ω

* Operates from Single Supply

* Low Thermal Resistance Package Applications

* PA Driver Amplifier

* Cellular, PCS, GSM, UMTS

* IF Amplifier

* Wireless Data, Satellite Parameter Specification Min. Typ. Max. Unit Cond

SGA2386Z General Description

The SGA2386Z is a high performance SiGe HBT MMIC Amplifier. A Darlington configuration featuring one-micron emitters provides high FT and excellent thermal performance. The heterojunction increases breakdown voltage and minimizes leakage current between junctions. Cancellation of emitter junction no.

SGA2386Z Datasheet (244.29 KB)

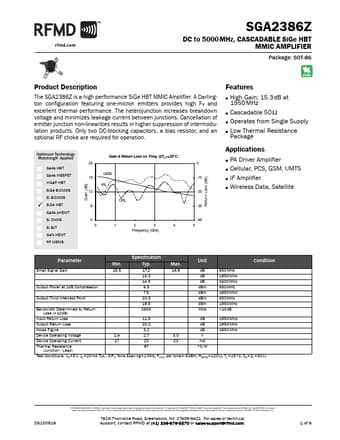

SGA2386Z Datasheet Preview — Preview of SGA2386Z PDF

Datasheet Details

Part number:

SGA2386Z

Manufacturer:

RFMD

File Size:

244.29 KB

Description:

Cascadable sige hbt mmic amplifier.
SGA2386ZDC to 5000MHz, Cascadable SiGe HBT MMIC Amplifier SGA2386Z DC to 5000MHz, CASCADABLE SiGe HBT MMIC AMPLIFIER Package: SOT-86 Product Descr.
