SGA2186Z - CASCADABLE SiGe HBT MMIC AMPLIFIER

SGA2186Z Description

SGA2186ZSGA2186Z DC to 5000MHz, CASCADABLE SiGe HBT MMIC AMPLIFIER Package: SOT-86 Product .
The SGA2186Z is a high performance SiGe HBT MMIC Amplifier.

SGA2186Z Features

* Broadband Operation: DC to 5000 MHz
* Cascadable 50Ω
* Operates from Single Supply

SGA2186Z Applications

* PA Driver Amplifier
* Cellular, PCS, GSM, UMTS
* IF Amplifier
* Wireless Data, Satellite Parameter Specification Min. Typ. Max. Unit Condition Small Signal Gain 9.2 10.2 11.2 dB 850MHz 9.3 dB 1950MHz 8.9 dB 2400MHz Output Power at 1dB Compression 7.5 dBm 850 MHz 6.7

📥 Download Datasheet

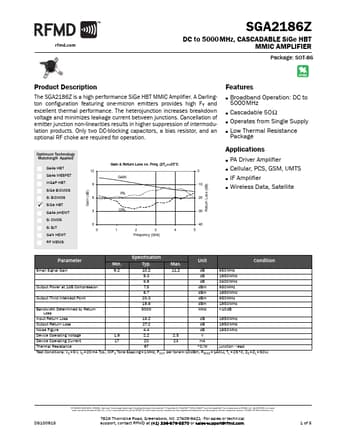

Preview of SGA2186Z PDF
