SGA2486Z - CASCADABLE SiGe HBT MMIC AMPLIFIER

SGA2486Z Description

SGA2486ZDC to 5000MHz, Cascadable SiGe HBT MMIC Amplifier SGA2486Z DC to 5000MHz, CASCADABLE SiGe HBT MMIC AMPLIFIER Package: SOT-86 Product Descr.
The SGA2486Z is a high performance SiGe HBT MMIC Amplifier.

SGA2486Z Features

* High Gain: 16.7dB at 1950 MHz
* Cascadable 50Ω
* Operates from Single Supply

SGA2486Z Applications

* PA Driver Amplifier
* Cellular, PCS, GSM, UMTS
* IF Amplifier
* Wireless Data, Satellite Parameter Specification Min. Typ. Max. Unit Condition Small Signal Gain 17.8 19.8 21.8 dB 850MHz 16.7 dB 1950MHz 15.3 dB 2400MHz Output Power at 1dB Compression 8.4 dBm 850 MHz 7

📥 Download Datasheet

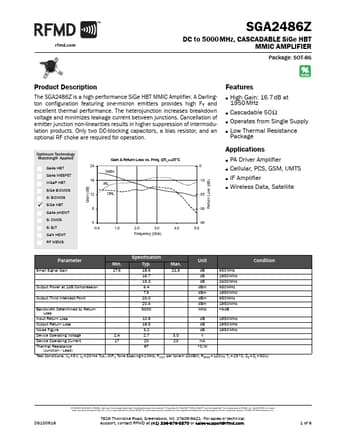

Preview of SGA2486Z PDF
