R1114N321A Low Noise 150 mA LDO Regulator

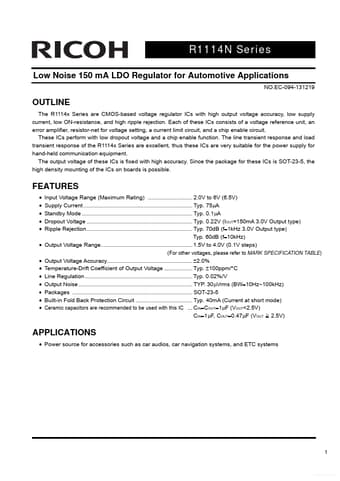

R1114N Series Low Noise 150 mA LDO Regulator for Automotive Applications NO.EC-094-131219 OUTLINE The R1114x Series are CMOS-based voltage regulator ICs with high output voltage accuracy, low supply current, low ON-resistance, and high ripple rejection. Each of these ICs consists of a voltage reference unit, an error amplifier, resistor-net for voltage setting, a current limit circuit, and a chip enable circuit. These ICs perform with low dropout voltage and a chip enable function. The line tran.

R1114N321A Features

* Input Voltage Range (Maximum Rating) 2.0V to 6V (6.5V)

* Supply Current
