Datasheet Details
Part number:
RP102N321B5, RP102K121B
Manufacturer:
RICOH
File Size:
372.06 KB
Description:
Low noise 300ma ldo regulator.
Note:
This datasheet PDF includes multiple part numbers: RP102N321B5, RP102K121B.
Please refer to the document for exact specifications by model.

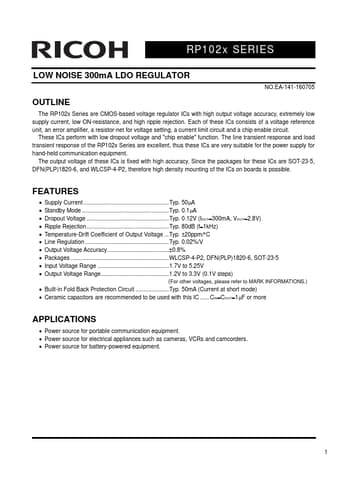

RP102N321B5, RP102K121B, LOW NOISE 300mA LDO REGULATOR
RP102x SERIES LOW NOISE 300mA LDO REGULATOR NO.EA-141-160705 OUTLINE The RP102x Series are CMOS-based voltage regulator ICs with high output voltage accuracy, extremely low supply current, low ON-resistance, and high ripple rejection.
Each of these ICs consists of a voltage reference unit, an error amplifier, a resistor-net for voltage setting, a current limit circuit and a chip enable circuit.
These ICs perform with low dropout voltage and "chip enable" function.
The line transient response
RP102N321B5 Features
* Supply Current Typ. 50A
* Standby Mode
