RP102Z - LOW NOISE 300mA LDO REGULATOR

Product Overview

Nisshinbo

Datasheet Details

Part number	RP102Z
Manufacturer	Nisshinbo
File Size	501.22 KB
Description	LOW NOISE 300mA LDO REGULATOR
Datasheet	RP102Z Datasheet

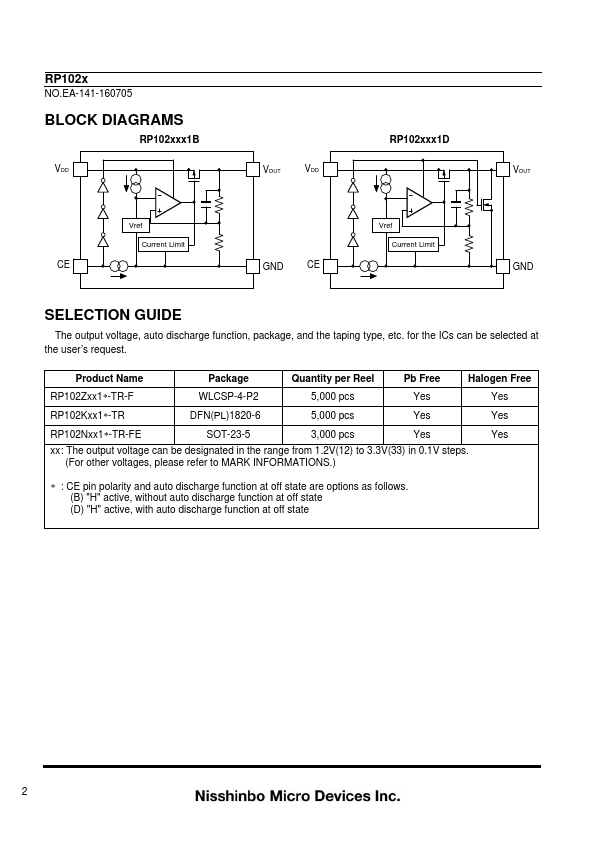

Additional preview pages of the RP102Z datasheet.

Product details

Description

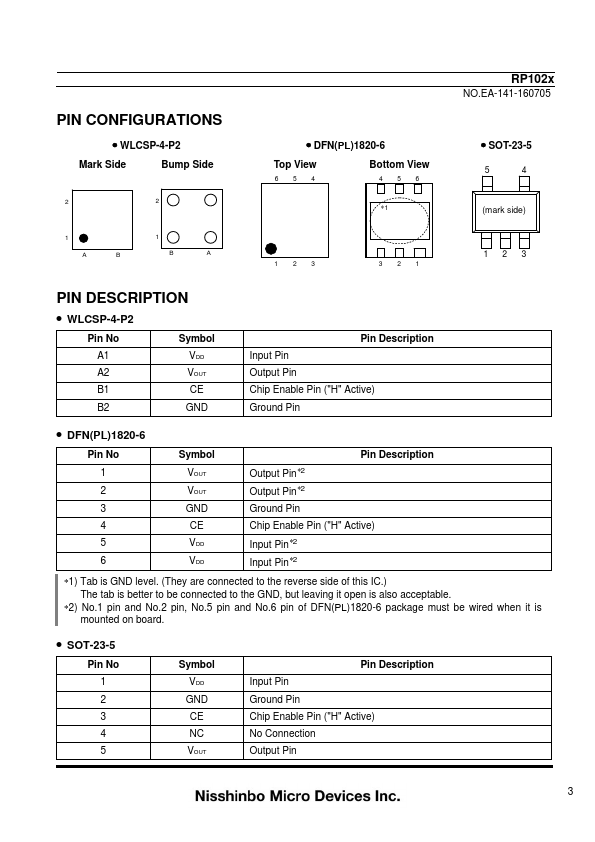

WLCSP-4-P2 Pin No A1 A2 B1 B2 Symbol VDD VOUT CE GND Pin Description Input Pin Output Pin Chip Enable Pin ("H" Active) Ground Pin DFN(PL)1820-6 Pin No 1 2 Symbol VOUT VOUT Output Pin2 Output Pin2 Pin Description 3 GND Ground Pin 4 CE Chip Enable Pin ("H" Active) 5 VDD Input Pin2 6 VDD Input Pin2  ∗1) Tab is GND level.(They are connected to the reverse side of this IC.) The tab is better to be connected to the GND, but leaving it open is also acceptable

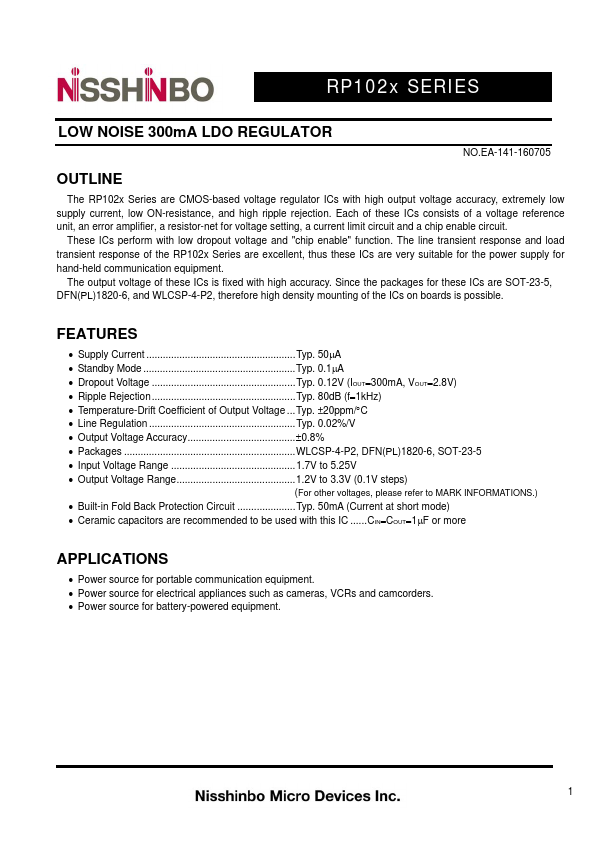

Features

Supply Current Typ. 50A.
Standby Mode Typ. 0.1A.
Dropout Voltage Typ. 0.12V (IOUT300mA, VOUT2.8V).
Ripple Rejection Typ. 80dB (f1kHz).
Temperature-Drift Coefficient of Output Voltage Typ. ±20ppm/C.
Line Regulation Typ. 0.02%/V.
Output Voltage Accuracy0.8%.
Packages WLCSP-4-P2, DFN(PL)1820-6, SOT-23-5.
Input Voltage Range 1.7V to 5.25V.
Output Voltage Range1.2V to 3.3V (0.1V steps) (For other voltages, please refer to MARK.
