B1340 - 2SB1340

B1340 Description

INCHANGE Semiconductor isc Product Specification www.DataSheet4U.com isc Silicon PNP Darlington Power Transistor 2SB1340 .
Collector-Emitter Breakdown Voltage: V(BR)CEO= -120V(Min). High DC Current Gain: hFE= 2000(Min)@ (VCE= -3V, IC= -2A). Complement to Type.

B1340 Applications

* Designed for power amplifier applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage -120 V VCEO Collector-Emitter Voltage -120 V VEBO Emitter-Base Voltage -6 V IC Collector Current-Continuous -6 A ICM Collector Current-Peak Coll

📥 Download Datasheet

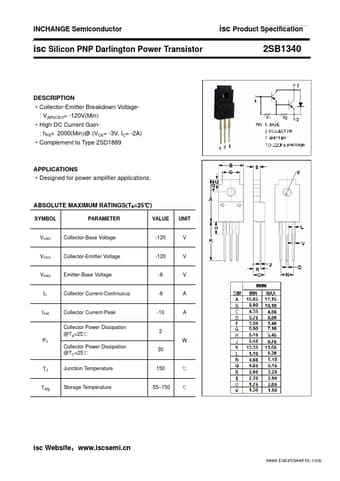

Preview of B1340 PDF
datasheet Preview Page 2
