2SB1198KFRA - Power Transistor

Product Overview

ROHM

📥 Download Datasheet

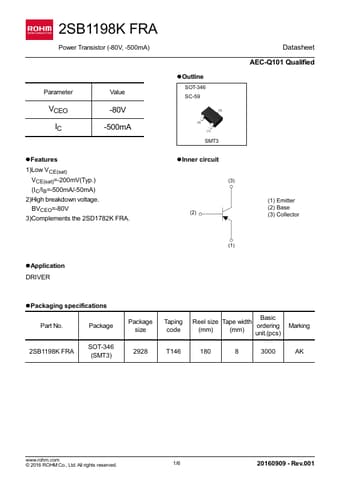

2SB1198KFRA Power Transistor by ROHM - Datasheet Preview — Datasheet preview – 2SB1198KFRA

Datasheet Details

Part number	2SB1198KFRA
Manufacturer	ROHM
File Size	1.40 MB
Description	Power Transistor
Datasheet	2SB1198KFRA Datasheet
Additional preview pages of the 2SB1198KFRA datasheet.

Product details

Features

1)Low VCE(sat) 　 VCE(sat)=-200mV(Typ. ) 　 (IC/IB=-500mA/-50mA) 2)High breakdown voltage. 　 BVCEO=-80V 3)Complements the 2SD1782K FRA. lOutline 　 SOT-346 　 SC-59 SMT3 lInner circuit Datasheet AEC-Q101 Qualified 　　　　　 l.
