2SCR544R NPN Transistor

2SCR544R Description

2SCR544R NPN 2.5A 80V Middle Power Transistor Datasheet Parameter VCEO IC Value 80V 2.5A l.

2SCR544R Features

* 1) Suitable for Middle Power Driver 2) Complementary PNP Types : 2SAR544R 3) Low VCE(sat) VCE(sat)=0.30V(Max. ) (IC/IB=1A/50mA) 4) Lead Free/RoHS Compliant. lOutline TSMT3 Collector Base Emitter 2SCR544R (SC-96) lInner circuit Collector Base Emitter lPackaging specifications Part No. Package

2SCR544R Applications

* Motor driver , LED driver Power supply Taping code TL Reel size (mm) Tape width (mm) Basic ordering unit (pcs) 180 8 3,000 Marking NS lAbsolute maximum ratings (Ta = 25°C) Parameter Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current DC Pulsed Power

📥 Download Datasheet

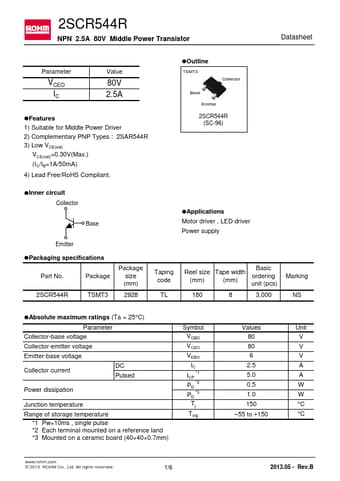

Preview of 2SCR544R PDF
