BA4560FV, BA4560F Datasheet - ROHM

BA4560FV - Low Noise Operational Amplifiers

BA4560xxx for normal grade and BA4560Rxxx, BA4564RFV, BA4564WFV for high-reliability grade integrate two or four high voltage gain Op-Amps on a single chip.

Especially, this series is suitable for any audio applications due to low noise and low distortion characteristics and they are usable for othe

BA4560FV Features

* High Voltage Gain, Low Noise, Low Distortion

* Wide Operating Supply Voltage Range

* Wide Operating Temperature Range Packages SOP8 SOP-J8 TSSOP-B8 MSOP8 SOP14 SSOP-B14 W(Typ) x D(Typ) x H(Max) 5.00mm x 6.20mm x 1.71mm 4.90mm x 6.00mm x 1.65mm 3.00mm x 6.40mm x 1.20mm 2.90mm x 4.00mm

BA4560F_Rohm.pdf

This datasheet PDF includes multiple part numbers: BA4560FV, BA4560F. Please refer to the document for exact specifications by model.

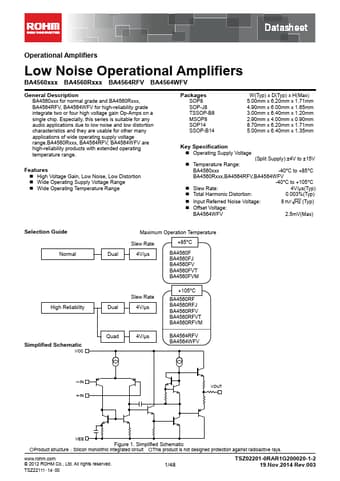

BA4560FV Datasheet Preview Page 2 BA4560FV Datasheet Preview Page 3

Datasheet Details

Part number:

BA4560FV, BA4560F

Manufacturer:

ROHM ↗

File Size:

1.69 MB

Description:

Low noise operational amplifiers.

Note:

This datasheet PDF includes multiple part numbers: BA4560FV, BA4560F.
Please refer to the document for exact specifications by model.
