BA4560 - Dual high slew rate operational amplifier

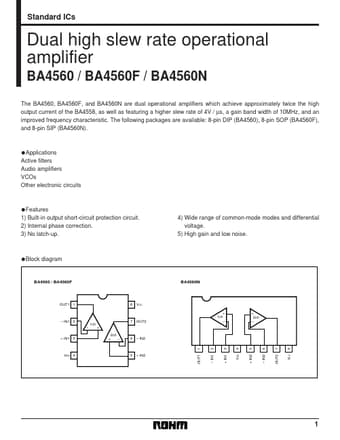

Standard ICs Dual high slew rate operational amplifier BA4560 / BA4560F / BA4560N The BA4560, BA4560F, and BA4560N are dual operational amplifiers which achieve approximately twice the high output current of the BA4558, as well as featuring a higher slew rate of 4V / µs, a gain band width of 10MHz, and an improved frequency characteristic.

The following packages are available: 8-pin DIP (BA4560), 8-pin SOP (BA4560F), and 8-pin SIP (BA4560N).

Applications Active filters Audio amplifie

BA4560 Features

* 1) Built-in output short-circuit protection circuit. 2) Internal phase correction. 3) No latch-up. 4) Wide range of common-mode modes and differential voltage. 5) High gain and low noise.

* Block diagram BA4560 / BA4560F BA4560N OUT1 1 8 VCC + 1ch

* + 2ch
