BA4510F - Dual high slew rate operational amplifier

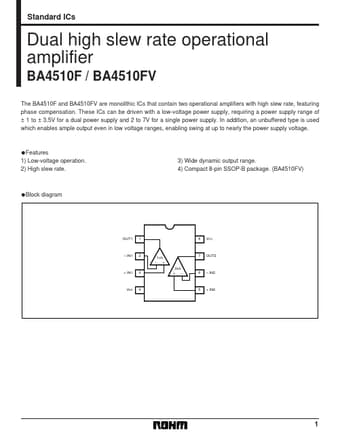

Standard ICs Dual high slew rate operational amplifier BA4510F / BA4510FV The BA4510F and BA4510FV are monolithic ICs that contain two operational amplifiers with high slew rate, featuring phase compensation.

These ICs can be driven with a low-voltage power supply, requiring a power supply range of ± 1 to ± 3.5V for a dual power supply and 2 to 7V for a single power supply.

In addition, an unbuffered type is used which enables ample output even in low voltage ranges, enabling swing at up to nea

BA4510F Features

* 1) Low-voltage operation. 2) High slew rate. 3) Wide dynamic output range. 4) Compact 8-pin SSOP-B package. (BA4510FV)

* Block diagram OUT1 1 8 VCC

* IN1 2 1ch

* + 7 OUT2 + IN1 3 + 2ch

* 6

* IN2 VEE 4 5 + IN2 1 Standard ICs BA4
