BA4558N

Dual operational amplifier

Rohm

BA4558N Features

* 1) Low power dissipation of approximately 50mW (typ.). 2) Built-in output short-circuit protection circuit. 3) Internal phase compensation. 4) No latch-up. 5) Wide range of common mode and differential voltage. 6) High gain and low noise.

* Block diagram BA4558 / BA4558F BA4558N O

BA4558N Datasheet (58.01 KB)

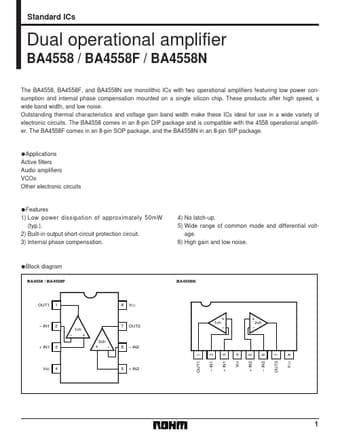

BA4558N Datasheet Preview — Preview of BA4558N PDF

Datasheet Details

Part number:

BA4558N

Manufacturer:

ROHM ↗

File Size:

58.01 KB

Description:

Dual operational amplifier.
Standard ICs Dual operational amplifier BA4558 / BA4558F / BA4558N The BA4558, BA4558F, and BA4558N are monolithic ICs with two operational amplifier.
