BD1321G - Ground Sense Low Power General Purpose Operational Amplifiers

Product Overview

ROHM

Datasheet Details

Part number	BD1321G
Manufacturer	ROHM
File Size	544.50 KB
Description	Ground Sense Low Power General Purpose Operational Amplifiers
Datasheet	BD1321G Datasheet

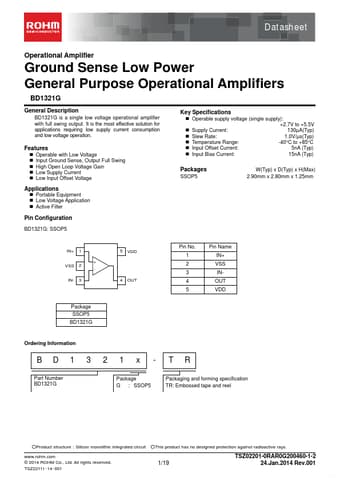

Additional preview pages of the BD1321G datasheet.

Product details

Description

BD1321G is a single low voltage operational amplifier with full swing output. Operable supply voltage (single supply): +2.7V to +5.5V 130µA(Typ) Supply Current: 1.0V/µs(Typ) Slew Rate: Temperature Range: -40°C to +85°C 5nA (Typ) Input Offset Current: Input Bias Current: 15nA (Typ)

Features

Operable with Low Voltage Input Ground Sense, Output Full Swing High Open Loop Voltage Gain Low Supply Current Low Input Offset Voltage Packages SSOP5 W(Typ) x D(Typ) x H(Max) 2.90mm x 2.80mm x 1.25mm.
