BD34301EKV, 768kHz Sampling Stereo Audio D/A Converter

Datasheet High Sound Quality Audio D/A Converters 32-bit, 768 kHz Sampling Stereo Audio D/A Converter BD34301EKV General .
BD34301EKV is 32-bit high sound quality Stereo Audio D/A converter with ROHM original sound quality design, realizing excellent numerical performance.

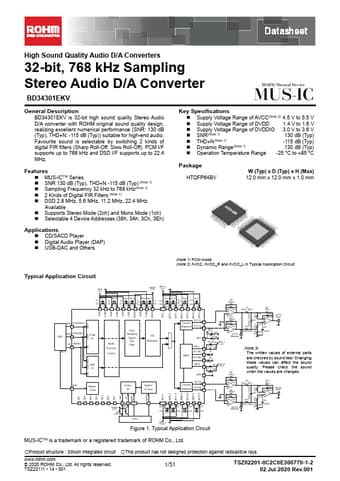

datasheet Preview Page 1 from Datasheet4u.com

BD34301EKV-ROHM.pdf

BD34301EKV Datasheet Preview — Preview of BD34301EKV PDF

Datasheet Details

Part number:

BD34301EKV

Manufacturer:

ROHM ↗

File Size:

2.39 MB

Description:

768kHz Sampling Stereo Audio D/A Converter

Features

* MUS-ICTM Series
* SNR 130 dB (Typ), THD+N -115 dB (Typ) (Note 1)
* Sampling Frequency 32 kHz to 768 kHz(Note 1)
* 2 Kinds of Digital FIR Filters (Note 1)
* DSD 2.8 MHz, 5.6 MHz, 11.2 MHz, 22.4 MHz Available
* Supports Stereo Mode (2ch) and Mono Mode (1ch)
* Selectable 4

Applications

* CD/SACD Player
* Digital Audio Player (DAP)
* USB-DAC and Others Key Specifications
* Supply Voltage Range of AVCC(Note 2) 4.5 V to 5.5 V
* Supply Voltage Range of DVDD 1.4 V to 1.6 V
* Supply Voltage Range of DVDDIO 3.0 V to 3.6 V
* SNR(Note 1) 130 dB (Typ)
