BD3403FV, BD3883FS - Sound Processors

BD3403FV Description

Sound Processors for BOOM BOX / Mini-component Stereo Sound Processors with Built-in 3-band Equalizers BD3403FV, BD3861FS, BD3883FS No.10086EAT01 The Sound Processor has a built-in 3 Band Equalizer and can be controlled with a 2-wire serial.

BD3403FV Features

* 1) High S/N, achieved by implementing 2-stage configuration of Front Volume and Rear Volume. 2) Provides surround and rear volume with Soft-switch to reduce a shock sound during switching functions(BD3883FS). 3) Volume and tone implemented with the resistance ladder circuit (to achieve high performa

BD3403FV Applications

* BOOM BOX, mini-audio systems, and micro-audio systems.
* Product lineup Parameter Operating Voltage Range Equalizer Front Volume Rear Volume Input Gain Microphone Input Surround Package BD3403FV BD3861FS BD3883FS 6.5 to 9.5V 6.5 to 9.5V 6.5 to 9.5V 3 band 3 band 3 band (BASS, MIDDLE, T

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: BD3403FV, BD3883FS. Please refer to the document for exact specifications by model.

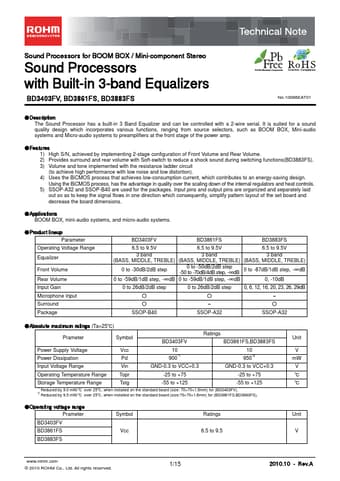

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BD3403FV, BD3883FS
Manufacturer
ROHM ↗
File Size
487.45 KB
Datasheet
BD3883FS_Rohm.pdf
Description
Sound Processors
Note
This datasheet PDF includes multiple part numbers: BD3403FV, BD3883FS.
Please refer to the document for exact specifications by model.
