BD3402KS2 - Single Power Supply Sound Processors

BD3402KS2 Description

Sound Processors for BOOM BOX / Mini-component Stereo Single Power Supply Sound Processors with Built-in Pre Amplifier for Tape Recording and Play B.
The Sound Processor with built-in record/play functions for cassette players, is suited for sound quality products such as, BOOM BOX, mini- and micro-.

BD3402KS2 Features

* 1) Provides Surround and Bass Boost with the Soft-switching feature to reduce the shock sound at switching (BD3401KS2) 2) Provides a specialized power supply terminal in a digital circuit, in order to set and maintain the state inside the IC by the minute stand-by current. 3) Built-in preamplifier f

BD3402KS2 Applications

* BOOM BOX, mini-audio systems, and micro-audio systems.
* Product lineup Equalizer Parameter Volume Cassette Recording/Playing Amplifier Karaoke Microphone Input Subwoofer Output Output for Spectrum Analyzer Surround Bass Boost Package BD3401KS2 3 band(BASS, MIDDLE, TREBLE) 0 to -44dB/2dB ste

📥 Download Datasheet

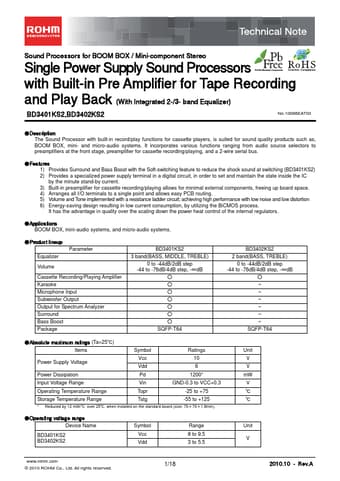

Preview of BD3402KS2 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BD3402KS2
Manufacturer
ROHM ↗
File Size
471.04 KB
Datasheet
BD3402KS2_Rohm.pdf
Description
Single Power Supply Sound Processors
