BD39001EKV-C - Power Management

Name: BD39001EKV-C
SKU: BD39001EKV-C-1082846

ROHM

📥 Download Datasheet

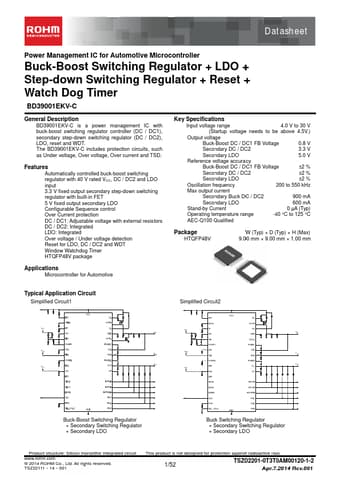

BD39001EKV-C Datasheet Preview — Preview of BD39001EKV-C PDF

Datasheet Details

Part number	BD39001EKV-C
Manufacturer	ROHM
File Size	1.30 MB
Description	Power Management
Datasheet	BD39001EKV-C-ROHM.pdf

BD39001EKV-C Product details

Description

BD39001EKV-C is a power management IC with buck-boost switching regulator controller (DC / DC1), secondary step-down switching regulator (DC / DC2), LDO, reset and WDT.

Features

Automatically controlled buck-boost switching regulator with 40 V rated VCC, DC / DC2 and LDO input 3.3 V fixed output secondary step-down switching regulator with built-in FET 5 V fixed output secondary LDO Configurable Sequence control Over Current protection DC / DC1: Adjustable voltage with external resistors DC / DC2: Integrated LDO: Integrated Over voltage / Under voltage detection Reset for LDO, DC / DC2 and WDT Window Watchdog Timer HTQFP48V package Key Specifications Input voltage ran.
