BD39002EFV-C Buck-Boost Switching Regulator + LDO + Reset + Watch Dog Timer

BD39002EFV-C Description

Datasheet Power Management IC for Automotive Microcontroller Buck-Boost Switching Regulator + LDO + Reset + Watch Dog Timer BD39002EFV-C General De.
BD39002EFV-C is a power management IC with buck-boost switching regulator controller (DC / DC1), LDO, reset and WDT.

BD39002EFV-C Features

* Automatically controlled buck-boost switching regulator with 40 V rated VCC, DC / DC and LDO input 5 V fixed output secondary LDO Configurable Sequence control Over Current protection DC / DC1: Adjustable voltage with external resistors LDO: Integrated Over voltage / Under voltage detection Reset fo

BD39002EFV-C Applications

* Microcontroller for Automotive Typical Application Circuit Simplified Circuit1 Simplified Circuit2 VCC EN1 CL VREG OUTH VO1 RT SS1 VL VDD FB1 OUTL COMP1 VO1 VS2 PGND1 VO2 EN2 CT ENWD CLK RTW SEL_UVLO GND RST2# RSTWD# PG1 PG2 VO1 VO2 Buck-Boost Switching Regulator + Secondary LDO VC

📥 Download Datasheet

Preview of BD39002EFV-C PDF

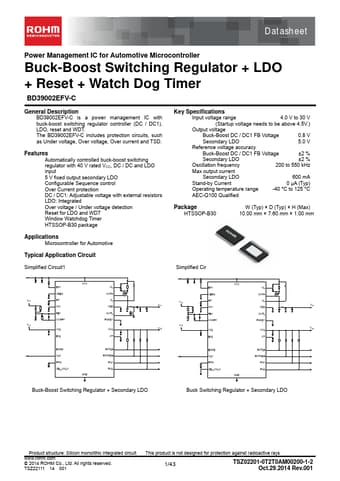

datasheet Preview Page 2 datasheet Preview Page 3
