BD301 NPN Transistor

BD301 Description

isc Silicon NPN Power Transistor BD301 .
DC Current Gain - : hFE =30(Min. Collector-Emitter Breakdown Voltage- : V(BR)CEO= 45V(Min. Complement to Type BD302. Mini.

BD301 Applications

* Designed for audio output stages up to 25W, vertical deflection circuits in color TV receivers. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 60 V VCEO Collector-Emitter Voltage 45 V VEBO Emitter-Base Voltage 5 V IC Collector Current

📥 Download Datasheet

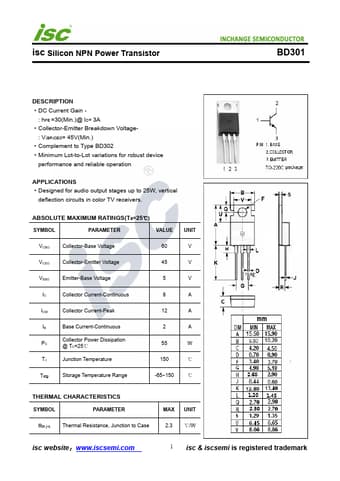

Preview of BD301 PDF
datasheet Preview Page 2

Datasheet Details

Part number
BD301
Manufacturer
INCHANGE
File Size
205.73 KB
Datasheet
BD301-INCHANGE.pdf
Description
NPN Transistor
