BD39040MUF-C System Power Good + Watchdog Timer/Reset

BD39040MUF-C Description

Datasheet Supervisor IC System Power Good + Watchdog Timer + Reset for Automotive BD39040MUF-C General .
BD39040MUF-C is a supervisor IC with quad power good, Watchdog timer and reset.

BD39040MUF-C Features

* AEC-Q100 Qualified(Note 1)
* Quad Power Good for External Inputs
* Over Voltage Detection (OVD)
* Under Voltage Detection (UVD)
* Adjustable Window Watchdog Timer(WDT)
* Reset for VDD Input (POR)
* Built-in Self-test (BIST) (Note 1) Grade 1 Key Specifications
* VD

BD39040MUF-C Applications

* Automotive for ADAS
* Camera Module
* Microwave Module
* Power Train ECU
* Other ECU Package VQFN16FV3030 W (Typ) x D (Typ) x H (Max) 3.00 mm x 3.00 mm x 1.00 mm Close-up Typical Application Circuit Battery VO1 VO2 VO3 PMIC/ Discrete DCDC VO4 VO5 RSTIN DIN1 VDD XR ST

📥 Download Datasheet

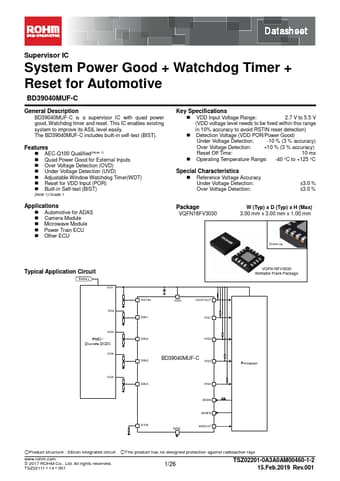

Preview of BD39040MUF-C PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BD39040MUF-C
Manufacturer
ROHM ↗
File Size
2.70 MB
Datasheet
BD39040MUF-C-ROHM.pdf
Description
System Power Good + Watchdog Timer/Reset
