BM6101FV-C

Isolation voltage 2500Vrms 1ch Gate Driver Providing Galvanic Isolation

BM6101FV-C Features

* Providing Galvanic Isolation

* Active Miller Clamping

* Fault signal output function (Adjustable output holding time)

* Undervoltage lockout function

* Thermal protection function

* Short current protection function (Adjustable reset time)

* Soft turn-off function for s

BM6101FV-C General Description

The BM6101FV-C is a gate driver with isolation voltage 2500Vrms, I/O delay time of 350ns, and minimum input pulse width of 180ns, and incorporates the fault signal output functions, undervoltage lockout (UVLO) function, thermal protection function, and short current protection (SCP, DESAT) function..

BM6101FV-C Datasheet (1.70 MB)

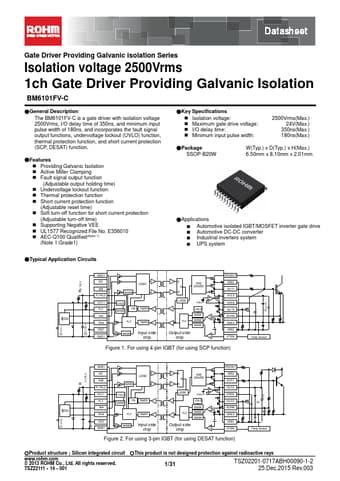

Preview of BM6101FV-C PDF

Datasheet Details

Part number:

BM6101FV-C

Manufacturer:

ROHM ↗

File Size:

1.70 MB

Description:

Isolation voltage 2500vrms 1ch gate driver providing galvanic isolation.
Datasheet Gate Driver Providing Galvanic isolation Series Isolation voltage 2500Vrms 1ch Gate Driver Providing Galvanic Isolation BM6101FV-C
*G.
