BM6109FV-C

1ch Gate Driver Providing Galvanic Isolation

BM6109FV-C Features

* AEC-Q100 Qualified(Note 1)

* Fault Signal Output Function

* Under Voltage Lockout Protection Function

* Short Circuit Protection Function

* Overcurrent Protection Function

* Overheat Protection Function

* Soft Turn Off Function (Adjustable Turn OFF Time)

* Active Mi

BM6109FV-C General Description

BM6109FV-C is a gate driver with an isolation voltage of 2500 Vrms. It has an I/O delay time of 700 ns, minimum input pulse width of 600 ns, and incorporates the fault signal output function, under voltage lockout (UVLO) function, Short circuit protection (SCP) function, overcurrent protection (OCP).

BM6109FV-C Datasheet (1.63 MB)

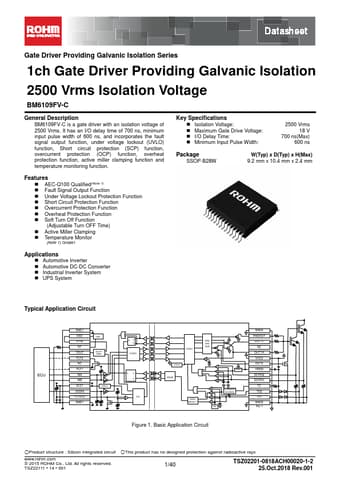

Preview of BM6109FV-C PDF

Datasheet Details

Part number:

BM6109FV-C

Manufacturer:

ROHM ↗

File Size:

1.63 MB

Description:

1ch gate driver providing galvanic isolation.
Datasheet Gate Driver Providing Galvanic Isolation Series 1ch Gate Driver Providing Galvanic Isolation 2500 Vrms Isolation Voltage BM6109FV-C Gene.
