BM6103FV-C - 1ch Gate Driver Providing Galvanic Isolation

Product Overview

Rohm

Datasheet Details

Part number	BM6103FV-C
Manufacturer	ROHM
File Size	951.66 KB
Description	1ch Gate Driver Providing Galvanic Isolation
Datasheet	BM6103FV-C Datasheet

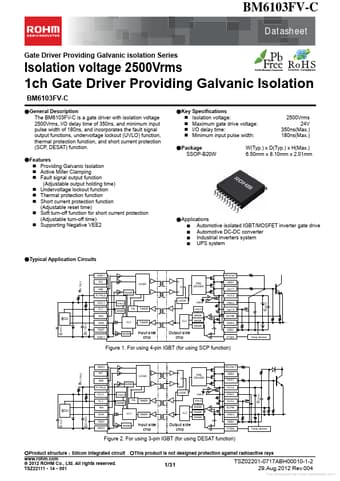

Additional preview pages of the BM6103FV-C datasheet.

Product details

Description

The BM6103FV-C is a gate driver with isolation voltage 2500Vrms, I/O delay time of 350ns, and minimum input pulse width of 180ns, and incorporates the fault signal output functions, undervoltage lockout (UVLO) function, thermal protection function, and short current protection (SCP, DESAT) function.

Features

Providing Galvanic Isolation.
Active Miller Clamping.
Fault signal output function (Adjustable output holding time).
Undervoltage lockout function.
Thermal protection function.
Short current protection function (Adjustable reset time).
Soft turn-off function for short current protection (Adjustable turn-off time).
Supporting Negative VEE2.
Key Specifications.
Isolation voltage:.
Maximum gate drive voltage:.
I/O delay time:.
Minimu.
