BM6201FS Three phase brushless fan motor driver

📥 Download Datasheet  Datasheet Preview Page 1

Description

BM6201FS For air-conditioner fan motor 600V PrestoMOS™ built-in Three phase brushless fan motor driver BM6201FS  General .
This motor driver IC adopts PrestoMOS™ as the output transistor, and put in a small full molding package with the high voltage gate driver chip.

📥 Download Datasheet

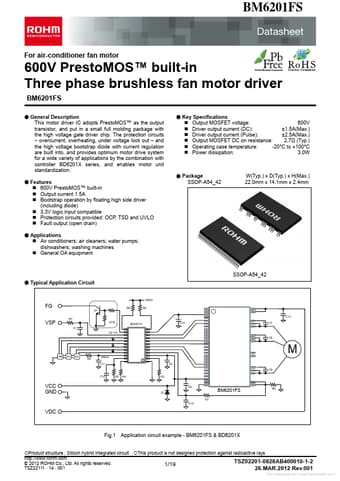

Preview of BM6201FS PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
BM6201FS
Manufacturer
ROHM ↗
File Size
0.99 MB
Datasheet
BM6201FS_Rohm.pdf
Description
Three phase brushless fan motor driver

Features

* 600V PrestoMOS™ built-in
* Output current 1.5A
* Bootstrap operation by floating high side driver (including diode)
* 3.3V logic input compatible
* Protection circuits provided: OCP, TSD and UVLO
