BM6202FS - 3-Phase Brushless Fan Motor Driver

Product Overview

ROHM

📥 Download Datasheet

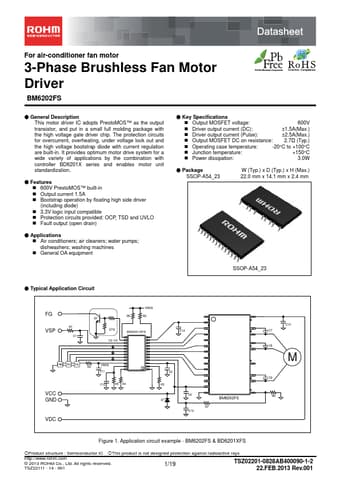

BM6202FS 3-Phase Brushless Fan Motor Driver by ROHM - Datasheet Preview — Datasheet preview – BM6202FS

Datasheet Details

Part number	BM6202FS
Manufacturer	ROHM
File Size	495.80 KB
Description	3-Phase Brushless Fan Motor Driver
Datasheet	BM6202FS Datasheet
Additional preview pages of the BM6202FS datasheet.

Product details

Description

This motor driver IC adopts PrestoMOS™ as the output transistor, and put in a small full molding package with the high voltage gate driver chip.

Features

600V PrestoMOS™ built-in.
Output current 1.5A.
Bootstrap operation by floating high side driver (including diode).
3.3V logic input compatible.
Protection circuits provided: OCP, TSD and UVLO.
Fault output (open drain) .
