BM6205FS - 3-Phase Brushless Fan Motor Driver

BM6205FS Description

For Air-Conditioner Fan Motor 3-Phase Brushless Fan Motor Driver BM6205FS General .
This motor driver IC adopts PrestoMOS™ as the output transistor, and put in a small full molding package with the 120° square wave commutation control.

BM6205FS Features

* 600V PrestoMOS™ built-in
* Output current 2.5A
* Bootstrap operation by floating high side driver (including diode)
* 120° square wave commutation logic
* PWM control
* Rotational direction switch
* FG signal output with pulse number switch (4 or 12)
* VREG output (

BM6205FS Applications

* Air co

📥 Download Datasheet

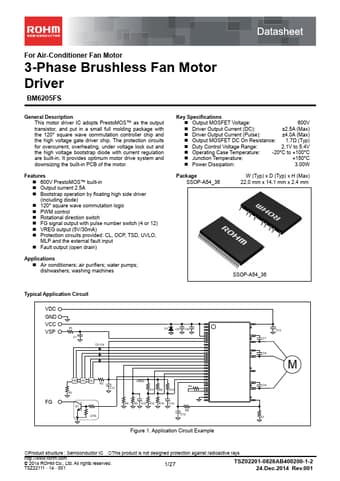

Preview of BM6205FS PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BM6205FS
Manufacturer
ROHM ↗
File Size
952.28 KB
Datasheet
BM6205FS-ROHM.pdf
Description
3-Phase Brushless Fan Motor Driver
