BU8254GUW - 35bit LVDS Transmitter

LVDS Interface IC of ROHM "Serializer" "Deserializer" operate from 8MHz to 150MHz wide clock range, and number of bits range is from 35 to 70.

Data is transmitted seven times (7X) stream and reduce cable number by 3(1/3) or less.

The ROHM's LVDS has low swing mode to be able to expect further low EM

BU8254GUW Features

* 1) 35bits data of parallel LVCMOS level inputs are converted to five channels of LVDS data stream. 2) 30bits of RGB data and 5bits of timing and control data(HSYNC,VSYNC,DE,CNTL1,CNTL2) are transmitted up to 784Mbps effective rate per LVDS channel. 3) Support clock frequency from 8MHz up to 112MHz.

BU8254GUW-ROHM.pdf

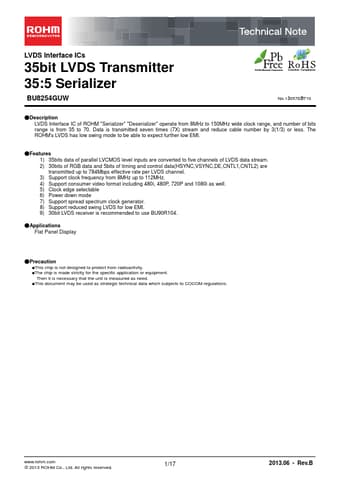

Preview of BU8254GUW PDF
