BU8255KVT - 35bit LVDS Receiver

BU8255KVT Description

LVDS Interface ICs 35bit LVDS Receiver 5:35 DeSerializer BU8255KVT *.
LVDS Interface IC of ROHM "Serializer" "Deserializer" operate from 8MHz to 150MHz wide clock range, and number of bits range is from 35 to 70.

BU8255KVT Features

* Five channels of LVDS data stream are converted to 35bits data of parallel LVCMOS level outputs.
* 30bits of RGB output data, 5bits of timing and control output data(HSYNC, VSYNC, DE, CTL1 and CTL2) are transmitted available.
* Support clock frequency from 8MHz up to 112MHz.
* Support

📥 Download Datasheet

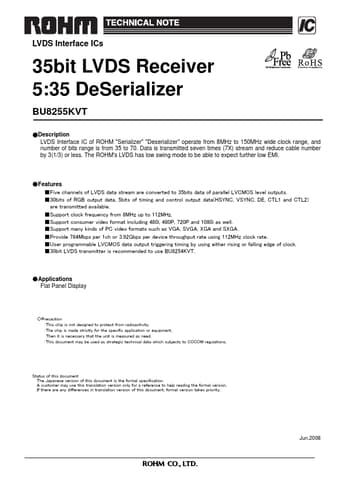

Preview of BU8255KVT PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BU8255KVT
Manufacturer
ROHM ↗
File Size
839.19 KB
Datasheet
BU8255KVT-ROHM.pdf
Description
35bit LVDS Receiver
