BU91501KV-M - Multi- function LCD Segment Drivers

Product Overview

ROHM

📥 Download Datasheet

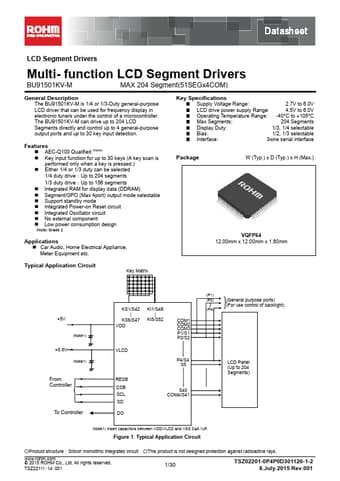

BU91501KV-M Multi- function LCD Segment Drivers by ROHM - Datasheet Preview — Datasheet preview – BU91501KV-M

Datasheet Details

Part number	BU91501KV-M
Manufacturer	ROHM
File Size	1.61 MB
Description	Multi- function LCD Segment Drivers
Datasheet	BU91501KV-M Datasheet
Additional preview pages of the BU91501KV-M datasheet.

Product details

Description

The BU91501KV-M is 1/4 or 1/3-Duty general-purpose LCD driver that can be used for frequency display in electronic tuners under the control of a microcontroller.

Features

AEC-Q100 Qualified (Note).
Key input function for up to 30 keys (A key scan is performed only when a key is pressed. ).
Either 1/4 or 1/3 duty can be selected 1/4 duty drive：Up to 204 segments 1/3 duty drive：Up to 156 segments.
Integrated RAM for display data (DDRAM).
Segment/GPO (Max 4port) output mode selectable.
Support standby mode.
Integrated Power-on Reset circuit.
Integrated Oscillator circuit.
No external component.
Low power consumption.
