BU91530KVT-M - Multi-function LCD Segment Drivers

Product Overview

ROHM

📥 Download Datasheet

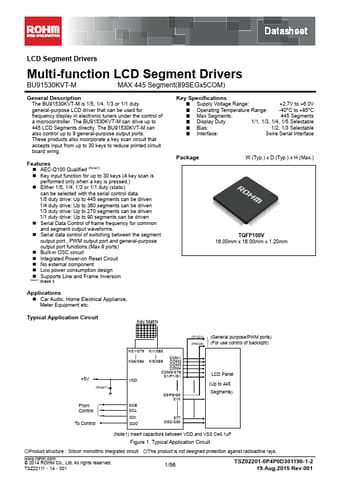

BU91530KVT-M Multi-function LCD Segment Drivers by ROHM - Datasheet Preview — Datasheet preview – BU91530KVT-M

Datasheet Details

Part number	BU91530KVT-M
Manufacturer	ROHM
File Size	1.71 MB
Description	Multi-function LCD Segment Drivers
Datasheet	BU91530KVT-M Datasheet
Additional preview pages of the BU91530KVT-M datasheet.

Product details

Description

The BU91530KVT-M is 1/5, 1/4, 1/3 or 1/1 duty general-purpose LCD driver that can be used for frequency display in electronic tuners under the control of a microcontroller.

Features

AEC-Q100 Qualified (Note1).
Key input function for up to 30 keys (A key scan is performed only when a key is pressed. ).
Either 1/5, 1/4, 1/3 or 1/1 duty (static) can be selected with the serial control data. 1/5 duty drive: Up to 445 segments can be driven 1/4 duty drive: Up to 360 segments can be driven 1/3 duty drive: Up to 270 segments can be driven 1/1 duty drive: Up to 90 segments can be driven.
Serial Dat.
