DTA023EM - PNP Digital Transistors

ROHM

📥 Download Datasheet

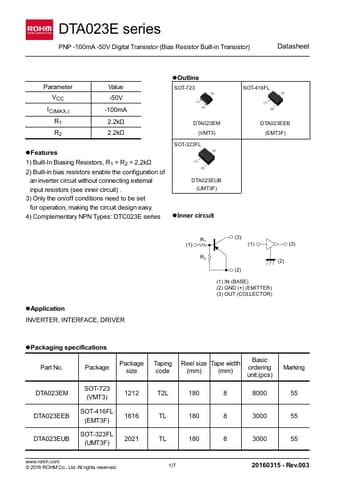

DTA023EM Datasheet Preview — Preview of DTA023EM PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	DTA023EM
Manufacturer	ROHM
File Size	1.37 MB
Description	PNP Digital Transistors
Datasheet	DTA023EM-ROHM.pdf

DTA023EM Product details

Features

1) Built-In Biasing Resistors, R1 = R2 = 2.2kΩ 2) Built-in bias resistors enable the configuration of 　an inverter circuit without connecting external 　input resistors (see inner circuit) . 3) Only the on/off conditions need to be set 　for operation, making the circuit design easy. 4) Complementary NPN Types: DTC023E series lOutline SOT-723 SOT-416FL 　　 DTA023EM DTA023EEB (VMT3) (EMT3F) SOT-323FL 　　　　　　　　　　　　　　　 DTA023EUB (UMT3F) 　　　　　　　　　　　　　 lInner circuit lApplicatio.
