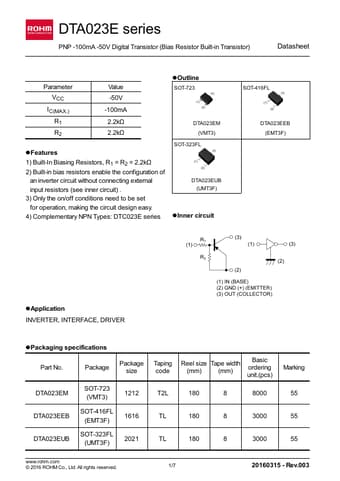

* 1) Built-In Biasing Resistors, R1 = R2 = 2.2kΩ 2) Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see inner circuit) . 3) Only the on/off conditions need to be set for operation, making the circuit design easy. 4) Complementary
DTA023EUB
1.37 MB
Pnp digital transistors.
DTA023E series
PNP -100mA -50V Digital Transistor (Bias Resistor Built-in Transistor)
Datasheet
Parameter VCC
IC(MAX.) R1 R2
Value -50V -100mA 2.2k.
