DTA024XEB, DTA024XM, PNP -100mA -50V Digital Transistors

DTA024X series PNP -100mA -50V Digital Transistor (Bias Resistor Built-in Transistor) Datasheet Parameter VCC IC(MAX.) R1 R2 Value -50V -100mA 22kΩ.

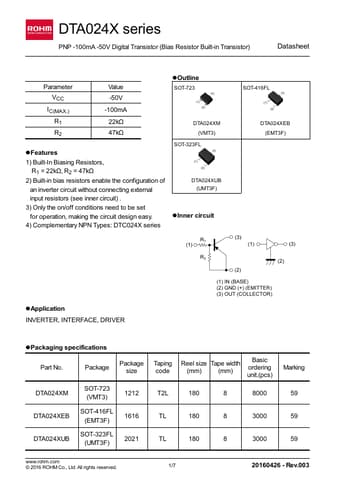

datasheet Preview Page 1 from Datasheet4u.com

DTA024XM-Rohm.pdf

DTA024XEB Datasheet Preview — This datasheet PDF includes multiple part numbers: DTA024XEB, DTA024XM. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

DTA024XEB, DTA024XM

Manufacturer:

ROHM ↗

File Size:

1.36 MB

Description:

PNP -100mA -50V Digital Transistors

Note:

This datasheet PDF includes multiple part numbers: DTA024XEB, DTA024XM.
Please refer to the document for exact specifications by model.

Features

* 1) Built-In Biasing Resistors, 　 R1 = 22kΩ, R2 = 47kΩ 2) Built-in bias resistors enable the configuration of 　an inverter circuit without connecting external 　input resistors (see inner circuit) . 3) Only the on/off conditions need to be set 　for operation, making the circuit design easy. 4) Complem
