DTA024XM

PNP -100mA -50V Digital Transistors

Rohm

DTA024XM Features

* 1) Built-In Biasing Resistors, 　 R1 = 22kΩ, R2 = 47kΩ 2) Built-in bias resistors enable the configuration of 　an inverter circuit without connecting external 　input resistors (see inner circuit) . 3) Only the on/off conditions need to be set 　for operation, making the circuit design easy. 4) Complem

DTA024XM Datasheet (1.36 MB)

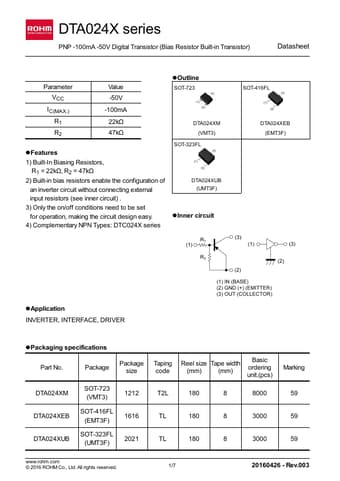

DTA024XM Datasheet Preview — Preview of DTA024XM PDF

Datasheet Details

Part number:

DTA024XM

Manufacturer:

ROHM ↗

File Size:

1.36 MB

Description:

Pnp -100ma -50v digital transistors.
DTA024X series PNP -100mA -50V Digital Transistor (Bias Resistor Built-in Transistor) Datasheet Parameter VCC IC(MAX.) R1 R2 Value -50V -100mA 22kΩ.
