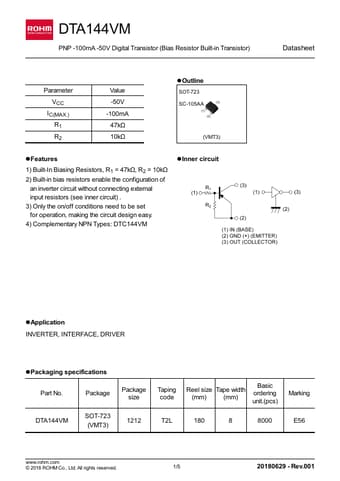

Part number:
DTA144VM
Manufacturer:
File Size:
1.59 MB
Description:
Pnp -100ma -50v digital transistor.
* 1) Built-In Biasing Resistors, R1 = 47kΩ, R2 = 10kΩ 2) Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see inner circuit) . 3) Only the on/off conditions need to be set for operation, making the circuit design easy. 4) Complemen
DTA144VM
1.59 MB
Pnp -100ma -50v digital transistor.
