DTC144ECA Digital Transistor

DTC144ECA Description

DTC144ECA NPN 100mA 50V Digital Transistors (Bias Resistor Built-in Transistors) Parameter VCC IC(MAX.) R1 R2 Value 50V 100mA 47kΩ 47kΩ l.

DTC144ECA Features

* 1) Built-In Biasing Resistors, R1 = R2 = 47kΩ 2) Built-in bias resistors enable the configuration of 　an inverter circuit without connecting external 　input resistors (see inner circuit) . 3) The bias resistors consist of thin-film resistors 　with complete isolation to allow negative biasing of the

📥 Download Datasheet

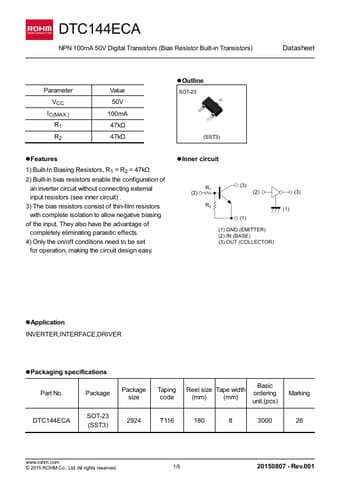

Preview of DTC144ECA PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DTC144ECA
Manufacturer
ROHM ↗
File Size
1.26 MB
Datasheet
DTC144ECA-ROHM.pdf
Description
Digital Transistor
