MG6405WZ

Insulated Gate Bipolar Transistor

ROHM

Download Datasheet (455.65 KB)

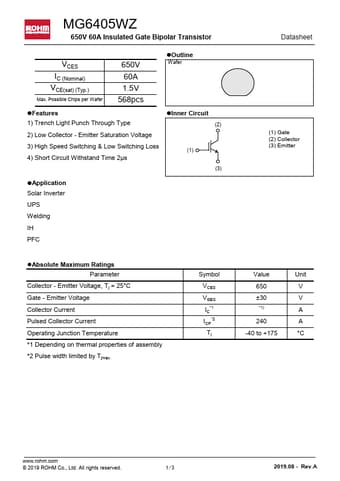

MG6405WZ Datasheet Preview — Preview of MG6405WZ Datasheet

Datasheet Details

Part number:

MG6405WZ

Manufacturer:

ROHM ↗

File Size:

455.65 KB

Download:

📥 MG6405WZ Datasheet PDF

Description:

Insulated gate bipolar transistor.
MG6405WZ 650V 60A Insulated Gate Bipolar Transistor VCES IC (Nominal) VCE(sat) (Typ.) Max. Possible.
Chips per Wafer 650V 60A 1.5V 568pcs lFeatures 1) Trench Light Punch Through Type 2) Low Collect.

✔ MG6405WZ Features

1) Trench Light Punch Through Type 2) Low Collector - Emitter Saturation Voltage 3) High Speed Switching & Low Switching Loss 4) Short Circuit Withstand Time 2μs lOut

✔ MG6405WZ Application

), please consult with the ROHM sales representative in advance. Unless otherwise agreed in writing by ROHM
