MG6308WZ Datasheet - ROHM

MG6308WZ Insulated Gate Bipolar Transistor

MG6308WZ Features

* 1) Trench Light Punch Through Type 2) Low Collector - Emitter Saturation Voltage 3) High Speed Switching 4) Low Switching Loss & Soft Switching lApplication PFC UPS Welding Solar Inverter IH lOutline Wafer lInner Circuit (2) (1) (3) lAbsolute Maximum Ratings Parameter Collector - Emitter Volta

MG6308WZ-ROHM.pdf

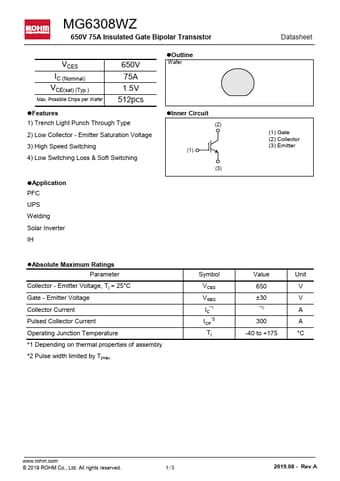

Preview of MG6308WZ PDF
MG6308WZ Datasheet Preview Page 2 MG6308WZ Datasheet Preview Page 3

Datasheet Details

Part number:

MG6308WZ

Manufacturer:

ROHM ↗

File Size:

455.07 KB

Description:

Insulated gate bipolar transistor.
