MG63P - 0.25m Embedded DRAM/ Customer Structured Arrays

OKI electronic componets

📥 Download Datasheet

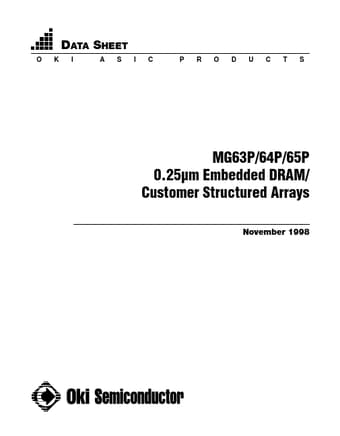

MG63P Datasheet Preview — Preview of MG63P PDF

Datasheet Details

Part number: MG63P
Manufacturer: OKI electronic componets
File Size: 267.61 KB
Datasheet: MG63P_OKIelectroniccomponets.pdf
Description: 0.25m Embedded DRAM/ Customer Structured Arrays

MG63P Product details

Description

Oki’s 0.25 µm MG63P/64P/65P Application-Specific Integrated Circuit (ASIC) provides the ability to embed large blocks of Synchronous DRAM (SDRAM) into an embedded array architecture called the Customer Structured Array (CSA).

Features

0.25µm drawn 3-, 4-, and 5-layer metal CMOS Optimized 2.5-V core Optimized 3-V I/O CSA architecture availability 100 MHz embedded SDRAM cores up to 16 Mb per occurrence 77-ps typical logic gate propagation delay (for a 4x-drive inverter gate with a fanout of 2 and 0 mm of wire, operating at 2.5 V) Over 5.4M raw gates and 868 I/O pads using 60µ staggered I/O User-configurable I/O with VSS, VDD, TTL, 3-state, and 1- to 24-mA options Slew-.
