RS0302 Datasheet - RUNIC

RS0302 Dual Bidirectional I2C-Bus and SMBus Voltage-Level Translator

This dual bidirectional I2C and SMBus voltage-level translator, with an enable (EN) input, is operational from 1.0V to 5.5V VREF1 and 1.8V to 5.5V VREF2. The RS0302 allows bidirectional voltage translations between 1.0V and 5V without the use of a direction pin. The low ON-state resistance (RON) of .

RS0302 Features

* 1.0V to 5.5V VREF1 and 1.8V to 5.5V VREF2 (VREF1

RS0302-RUNIC.pdf

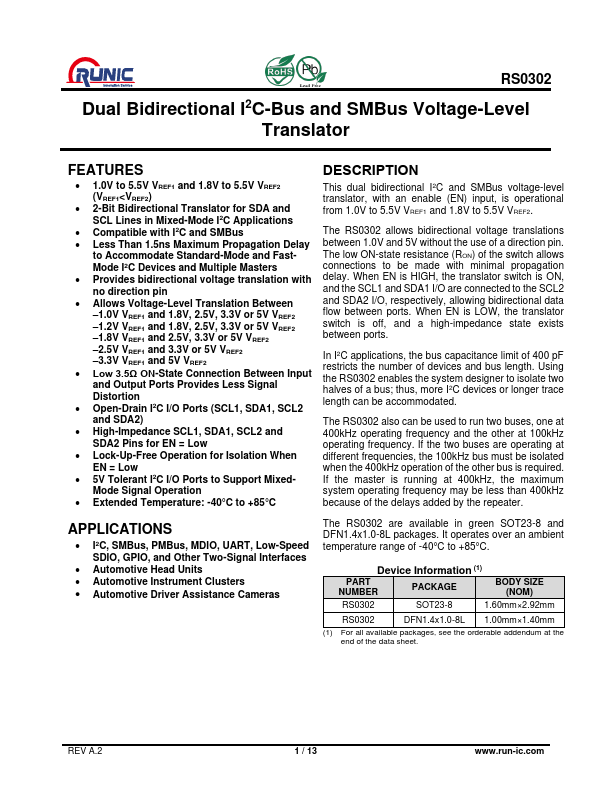

Preview of RS0302 PDF

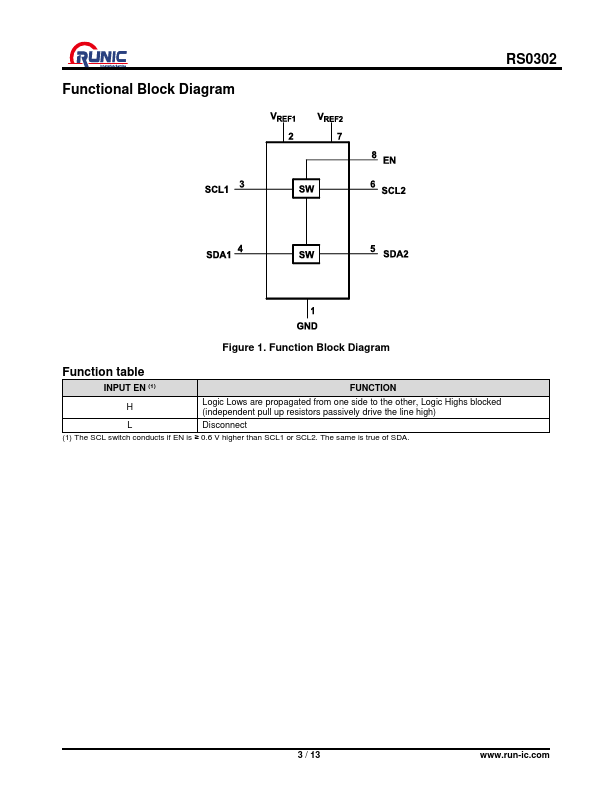

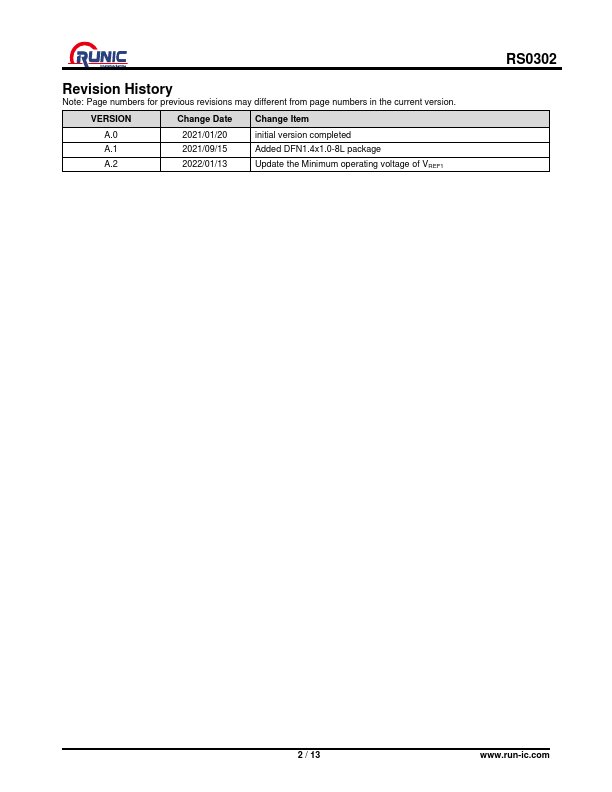

RS0302 Datasheet Preview Page 2 RS0302 Datasheet Preview Page 3

Datasheet Details

Part number:

RS0302

Manufacturer:

RUNIC

File Size:

433.85 KB

Description:

Dual bidirectional i2c-bus and smbus voltage-level translator.
