RS1T45 1-Bit Dual-Supply Bus Transceiver

RUNIC

Description

RS1T45 1-Bit Dual-Supply Bus Transceiver with Configurable Voltage Translation and 3-State Outputs 1 .
The RS1T45 is 1-bit non-inverting bus transceiver uses two separate configurable power supply rails.

📥 Download Datasheet

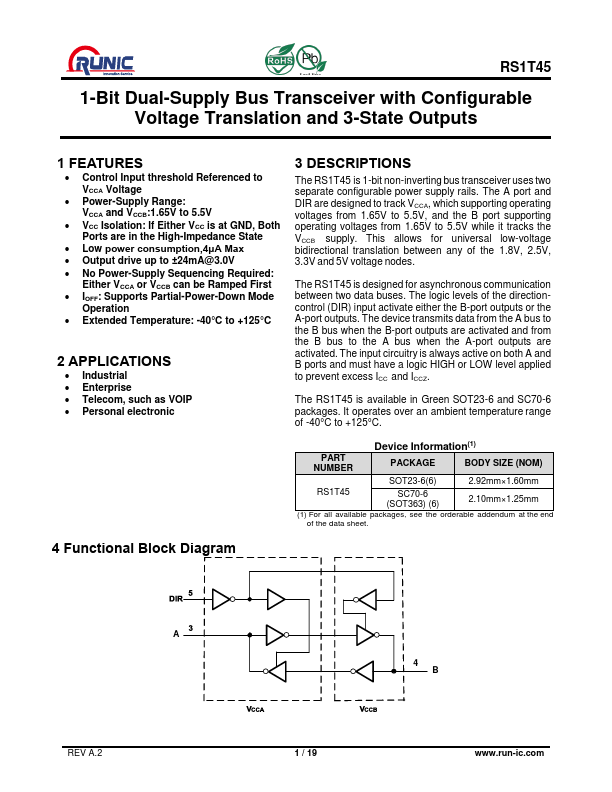

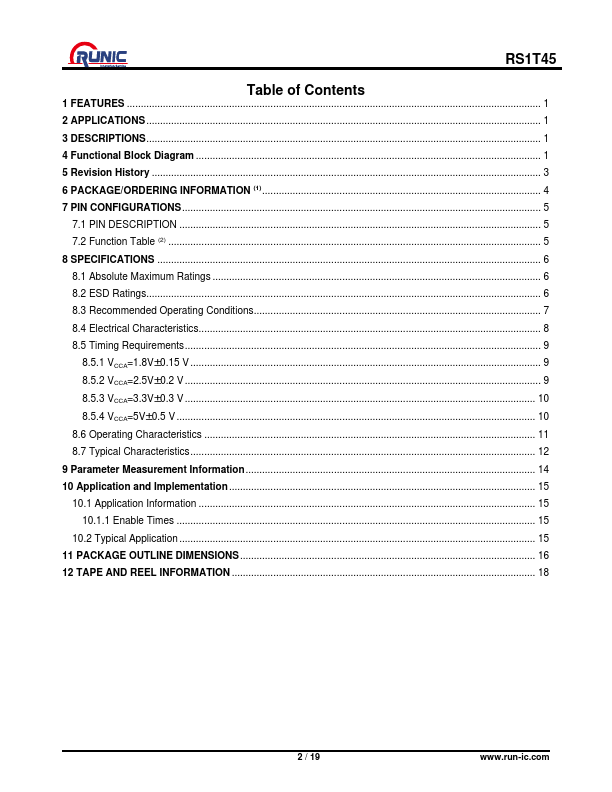

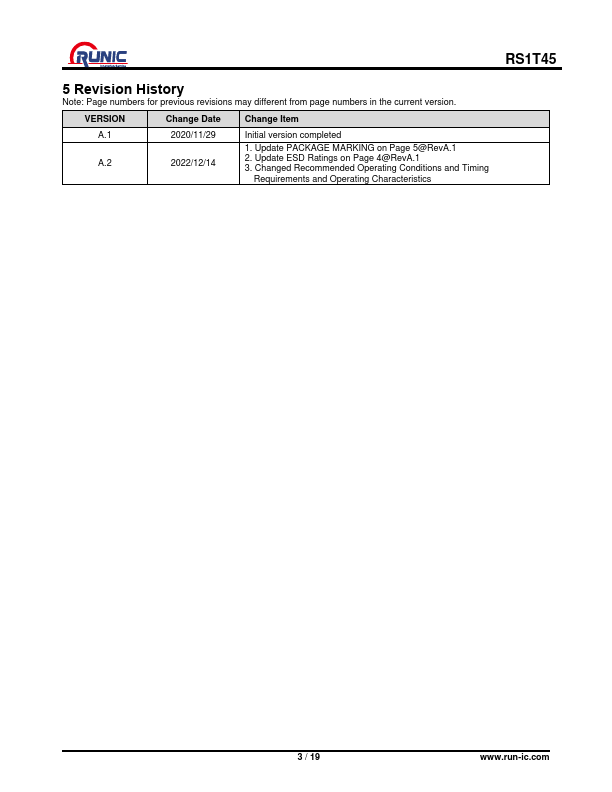

RS1T45 Datasheet Preview — Preview of RS1T45 PDF

Datasheet Specifications

Part number: RS1T45
Manufacturer: RUNIC
File Size: 534.68 KB
Datasheet: RS1T45-RUNIC.pdf
Description: 1-Bit Dual-Supply Bus Transceiver

Features

* Control Input threshold Referenced to VCCA Voltage
* Power-Supply Range: VCCA and VCCB:1.65V to 5.5V
* VCC Isolation: If Either VCC is at GND, Both Ports are in the High-Impedance State
* Low power consumption,4μA Max
* Output drive up to ±24mA@3.0V

Applications

* Industrial
* Enterprise
* Telecom, such as VOIP
