RS8557-Q1, Rail-to-Rail I/O CMOS Operational Amplifiers

RS8557-Q1,RS8558-Q1,RS8559-Q1 Zero-Drift, Rail-to-Rail I/O CMOS Operational Amplifiers 1 .
The RS8557-Q1, RS8558-Q1, RS8559-Q1 series of CMOS operational amplifiers use auto-zero techniques to simultaneously provide very low offset voltage.

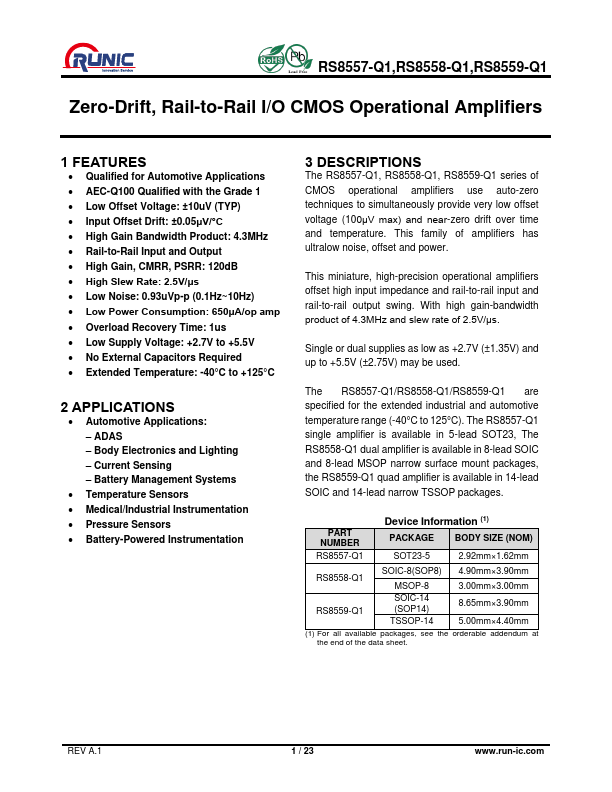

datasheet Preview Page 1 from Datasheet4u.com

RS8557-Q1-RUNIC.pdf

RS8557-Q1 Datasheet Preview — Preview of RS8557-Q1 PDF

Datasheet Details

Part number:

RS8557-Q1

Manufacturer:

RUNIC

File Size:

545.96 KB

Description:

Rail-to-Rail I/O CMOS Operational Amplifiers

Applications

* AEC-Q100 Qualified with the Grade 1
* Low Offset Voltage: ±10uV (TYP)
* Input Offset Drift: ±0.05μV/°C
* High Gain Bandwidth Product: 4.3MHz
* Rail-to-Rail Input and Output
* High Gain, CMRR, PSRR: 120dB
* High Slew Rate: 2.5V/μs
* Lo
