RT3215-32.768-6-TR Datasheet - Raltron

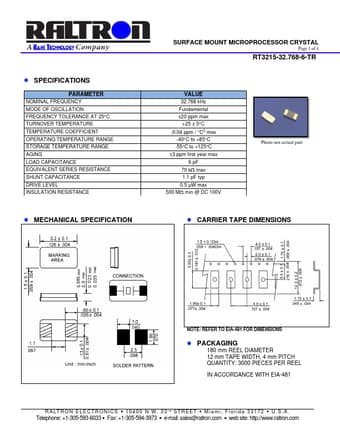

RT3215-32.768-6-TR SURFACE MOUNT MICROPROCESSOR CRYSTAL

SPECIFICATIONS PARAMETER NOMINAL FREQUENCY MODE OF OSCILLATION FREQUENCY TOLERANCE AT 25°C TURNOVER TEMPERATURE TEMPERATURE COEFFICIENT OPERATING TEMPERATURE RANGE STORAGE TEMPERATURE RANGE AGING LOAD CAPACITANCE EQUIVALENT SERIES RESISTANCE SHUNT CAPACITANCE DRIVE LEVEL INSULATION RESISTANCE MECHANICAL SPECIFICATION SURFACE MOUNT MICROPROCESSOR CRYSTAL Page 1 of 4 RT3215-32.768-6-TR VALUE 32.768 kHz Fundamental ±20 ppm max +25 ± 5°C -0.04 ppm / °C2 max -40°C to +85°C -55°C.
