RT320240C-FHW-V Datasheet - Raystar

RT320240C-FHW-V Display Module

2 Display Type：TAB Type 3 Number of dots：320 x240 Dots 4 Serials code P：TN Positive, Gray N：TN Negative, G：STN Positive, Gray 5 LCD Y：STN Positive, Yellow Green B：STN Negative, Blue F：FSTN Positive T：FSTN Negative A：Reflective, N.T, 6:00 K：Transflective, W.T,12:00 Polarizer Type, D：Ref.

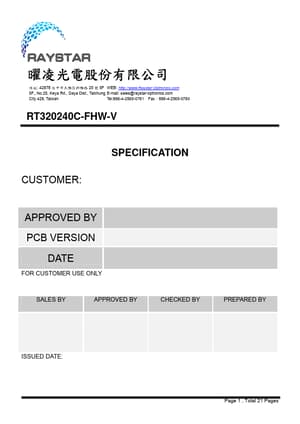

: 42878 25 5F WEB: http://www.Raystar-Optronics.com 5F., No.25, Keya Rd., Daya Dist., Taichung E-mail: sales@raystar-optronics.com City 428, Taiwan Tel:886-4-2565-0761 Fax：886-4-2565-0760 RT320240C-FHW-V CUSTOMER: SPECIFICATION APPROVED BY PCB VERSION DATE FOR CUSTOMER USE ONLY SALES BY APPROVED BY CHECKED BY PREPARED BY ISSUED DATE: Page 1 , Total 21 Pages Contents 1. Revision History 2. General Specification 3. Module Coding System 4. Interface Pin Function 5. Outline dimensi.

RT320240C-FHW-V Features

* is described as follow: Module dimension: 94.7x 83.3 x 12.0 (max.) mm3 View area: 81.4 x 61.0 mm2 Active area: 76.78 x 57.58 mm2 Number of dots: 320 x 240 Dot size: 0.225 x 0.225 mm2 Dot pitch: 0.24 x 0.24 mm2 LCD type: FSTN Positive , Transflective Duty: 1/240 View direction: 6 o’clock Backlight Ty

RT320240C-FHW-V Datasheet (1.20 MB)
