RT320240A-3 Datasheet - RUITE

RT320240A-3 Display Module

RT320240A-3(BL) SHENZHEN RUITE ELECTRONIC CO.,LTD Address:791071-37、8 Tel:86-755-27931867, 27931884, 27931806, 27931875 FAX:86-755-27931864 Postcode:518102 E-Mail:rt@ruitelcd.com Http://www.ruitelcd.com MECHANICAL DATA PIN CONNECTIONS Item Module Size(W×H×T) Viewing Area(W×H) Dot Pitch(W×H) Dot Size(W×H) Nominal Dimensions 160.0×109.0×12.0 122.0×92.0 0.36×0.36 0.33×0.33 Unit PIN Symbol Level Function mm 1 VSS GND(0V) mm 2 VDD Supply Voltage for Logic(+5.

RT320240A-3-ETC.pdf

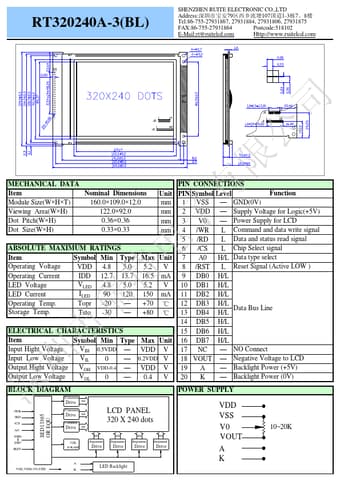

Preview of RT320240A-3 PDF

Datasheet Details

Part number:

RT320240A-3

Manufacturer:

RUITE

File Size:

59.04 KB

Description:

Display module.
