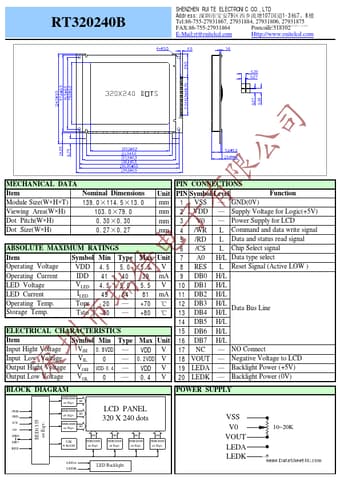

RT320240B SHENZHEN RUITE ELECTRONIC CO.,LTD Address:791071-37、8 Tel:86-755-27931867, 27931884, 27931806, 27931875 www.DataSheet4U.com FAX:86-755-27931864 Postcode:518102 E-Mail:rt@ruitelcd.com Http://www.ruitelcd.com BLOCK DIAGRAM S6B2086 or Eqv.
80 /WR /RD /CS A0 DB0 DB7 RES S6B2086 or Eqv.
80 SED1335 or Eqv.
LCD PANEL 320 X 240 dots 80 S6B2086 or Eqv.
80 S6B2086 or Eqv.
80 S6B2086 or Eqv.
80 S6B2086 or Eqv.
MECHANICAL DATA Item Nominal Dimensions Module Size(W×H×T) 139.0×114
